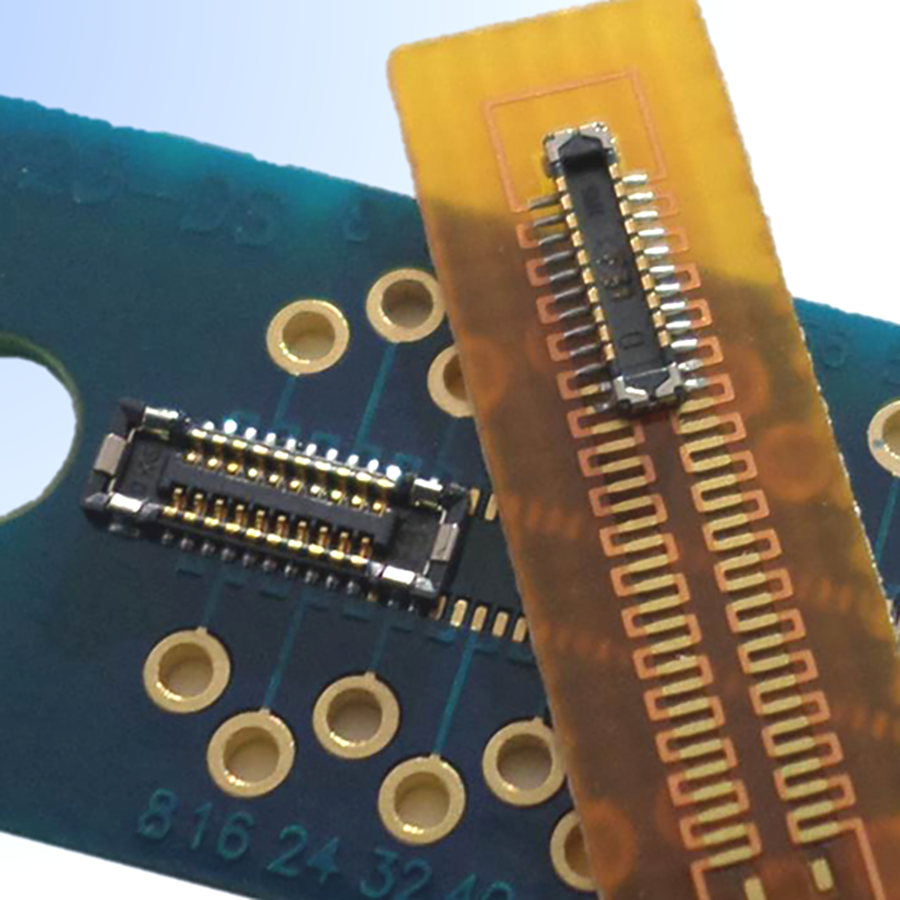

BM23FR0.6-12DP-0.35V(895)
Manufacturer:
Hirose Electric
Mfr.Part #:
BM23FR0.6-12DP-0.35V(895)
Datasheet:
Description:
Board to Board Connectors SMD/SMT Plug Number of Positions:12 Number of Rows:2 Pitch:350 µm
| Parameter | Value |
|---|---|
| Length | 3.8 mm |
| Width | 1.5 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Height | 515 µm |
| Packaging | Reel |
| Voltage Rating | 30 V |
| RoHS | Compliant |
| Manufacturer Package Identifier | BM23FR0.6-12DP-0.35V(895) |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Gold, Nickel |
| Pitch | 350 µm |
| Current Rating | 300 mA |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Number of Contacts | 12 |
| Connector Type | Plug |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Contact Resistance | 100 mΩ |
| Housing Color | Black |
| Stack Height | 600 µm（0.6 mm） |
| Contact Voltage Rating (AC) | 30 V |
| Contact Voltage Rating (DC) | 30 V |
| Contact Pitch | 0.35 mm |
| Mounting Angle | Straight |
Stock: 293
Distributors
pcbx
pcbxUnit Price$0.46337
Ext.Price$0.46337
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.46337 | $0.46337 |
| 10 | $0.37446 | $3.74460 |
| 25 | $0.32573 | $8.14325 |
| 50 | $0.31575 | $15.78750 |
| 100 | $0.30607 | $30.60700 |
| 300 | $0.28481 | $85.44300 |
| 500 | $0.26503 | $132.51500 |
| 1000 | $0.22570 | $225.70000 |
| 3000 | $0.21117 | $633.51000 |
